Toyota 8FBR

Model			Standard Type							High-mast Type
Model			8FBR10	8FBR13	8FBR15	8FBR18	8FBR20	8FBR25	8FBR30	8FBRS20	8FBRS25
Operation Position			Stand-up	Stand-up	Stand-up	Stand-up	Stand-up	Stand-up	Stand-up	Stand-up	Stand-up
Load Capacity		kg	1,000	1,250	1,500	1,800	2,000	2,500	3,000	2,000	2,500
Load Center		mm	500	500	500	500	500	500	500	500	500
Overall Width		mm	1,090	1,090	1,090	1,090	1,190	1,190	1,240	1,190	1,190
Turning Radius (Outside)		mm	1,340	1,490	1,580	1,730	1,750	1,950	2,000	1,750	1,950
Overhead Guard Height		mm	2,250	2,250	2,250	2,250	2,330	2,330	2,330	2,330	2,330
Length to Fork Face		mm	1,050	1,050	1,155	1,155	1,250	1,270	1,320	1,250	1,270
Voltage/Capacity (5-hour ratings)	Min	V/AH	48/201	48/201	48/280	48/280	48/320	48/320	48/390	48/320	48/320
Voltage/Capacity (5-hour ratings)	Max	V/AH	48/240	48/240	48/370	48/370	48/445	48/445	48/445	48/445	48/445
Electric Motors	Drive	kW	4.9	4.9	4.9	4.9	5.2	5.2	5.2	5.2	5.2
	Load Handling	kW	8	8	8	8	11	11	11	11	11
	Power Steering	kW	0.26	0.26	0.26	0.26	0.35	0.35	0.35	0.35	0.35

Rear-positioned Headguard Pillar

Load Weight Indicator

Anti-rollback

Shockless Landing

Automatic Turn-speed control

Stable Brake, Start Off and Switchback

LED Blue Light

Operator Presence Sensing System (OPS)

Support Stable Turning and Load-handling Operations

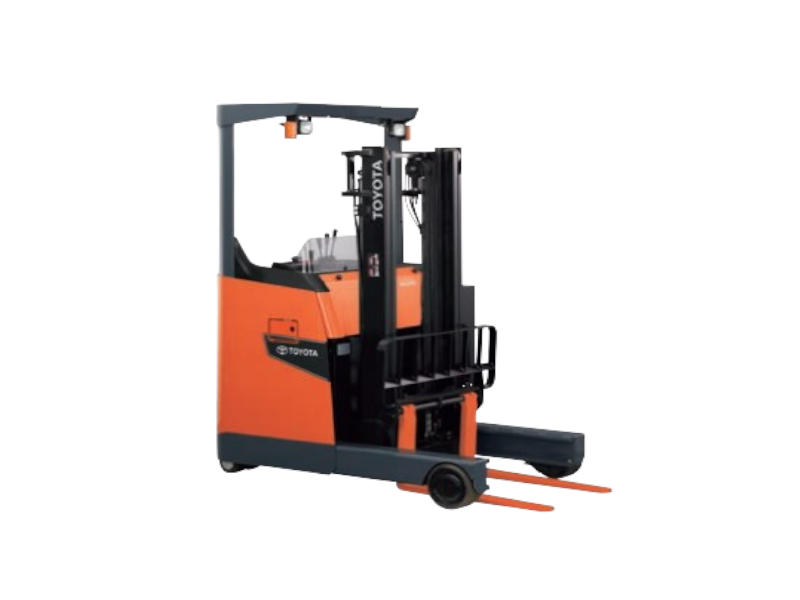

8FBR15

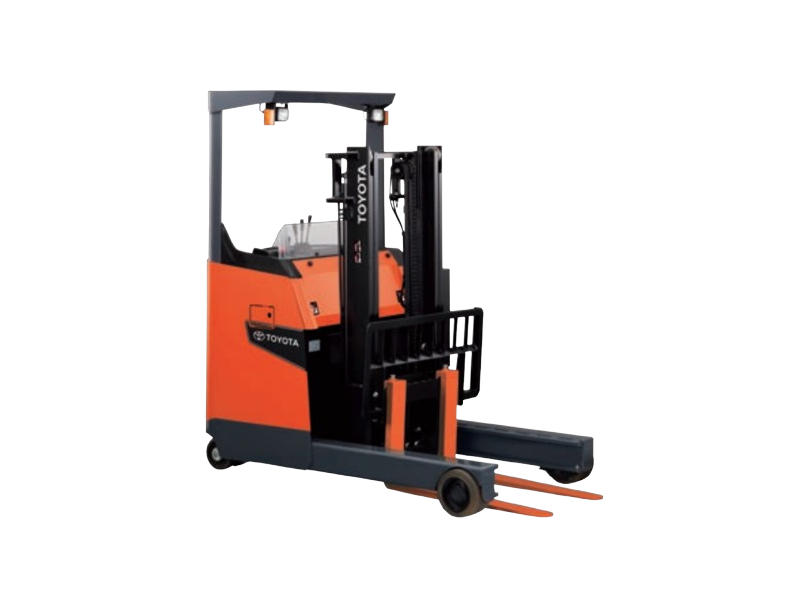

8FBR30

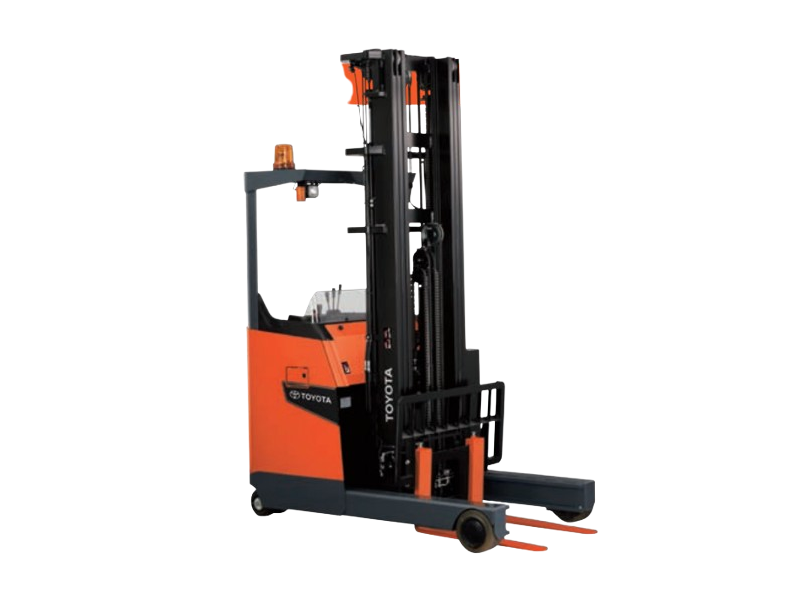

8FBRS25
