Toyota 7FBE

Model			7FBE10	7FBE13	7FBE15	7FBE18	7FBE20
Load Capacity		kg	1,000	1,250	1,500	1,750	2,000
Load Center		mm	500	500	500	500	500
Overall Width		mm	1,075	1,075	1,075	1,075	1,075
Turning Radius (Outside)		mm	1,365	1,400	1,515	1,550	1,675
Overhead Guard Height		mm	1,980	1,980	1,980	1,980	1,980
Length to Fork Face		mm	1,750	1,755	1,875	1,905	2,045
Voltage/Capacity (5-hour ratings)	STD	V/AH	48/280	48/280	48/390	48/390	48/390
Voltage/Capacity (5-hour ratings)	High	V/AH	48/365	48/365	48/565	48/565	48/645
Electric Motors	Drive	kW x Unit	4.9 x 2	4.9 x 2	4.9 x 2	4.9 x 2	4.9 x 2
Electric Motors	Load Handling	kW	9.2	9.2	9.2	9.2	9.2

Full AC Power System*

Power Select Function

Power Keep Function

Regenerative System

Sharp Pivot Turn

Compact Drive Unit

Active Steering Synchronizer

Active Mast Function Controller

Low Step Height

Automatic Dork Levelling Control

System of Active Stability (SAS)

Operator Restraint System (ORS) Seat

Adjustable Steering Column with Tilt Memory

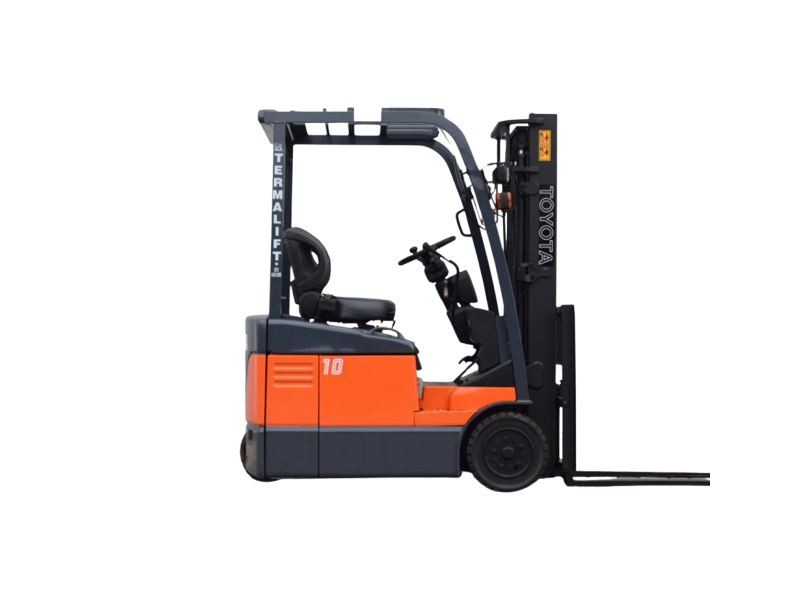

7FBE10

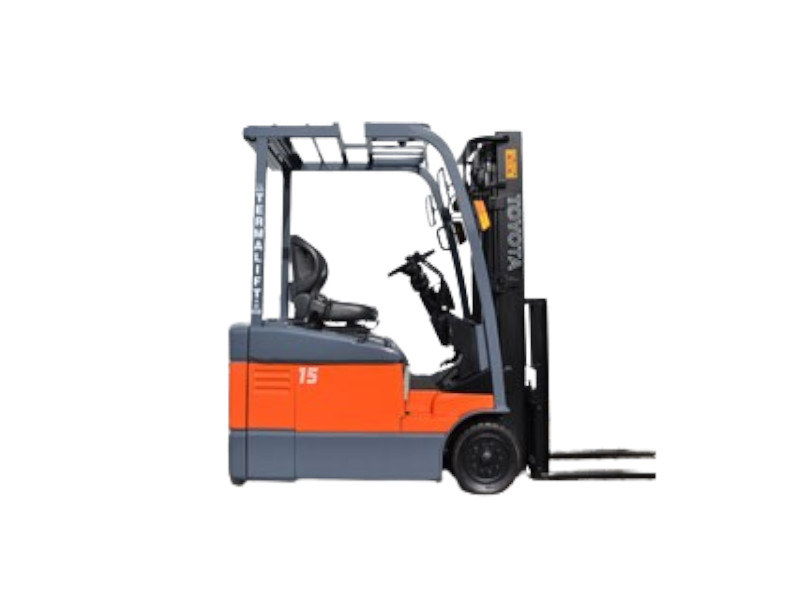

7FBE15

Model			7FBE10	7FBE13	7FBE15	7FBE18	7FBE20
Load Capacity		kg	1,000	1,250	1,500	1,750	2,000
Load Center		mm	500	500	500	500	500
Overall Width		mm	1,075	1,075	1,075	1,075	1,075
Turning Radius (Outside)		mm	1,365	1,400	1,515	1,550	1,675
Overhead Guard Height		mm	1,980	1,980	1,980	1,980	1,980
Length to Fork Face		mm	1,750	1,755	1,875	1,905	2,045
Voltage/Capacity (5-hour ratings)	STD	V/AH	48/280	48/280	48/390	48/390	48/390
Voltage/Capacity (5-hour ratings)	High	V/AH	48/365	48/365	48/565	48/565	48/645
Electric Motors	Drive	kW x Unit	4.9 x 2	4.9 x 2	4.9 x 2	4.9 x 2	4.9 x 2
Electric Motors	Load Handling	kW	9.2	9.2	9.2	9.2	9.2
