Toyota 8 Series

Model		8FG10	8FG15	8FG18*	8FGK20*	8FG20	8FGK25*	8FG25	8FGK30*	8FG30	8FG35
Model		8FD10	8FD15	8FD18*	8FDK20*	8FD20	8FDK25*	8FD25	8FDK30*	8FD30	8FD35
Engine Model		4Y 1 DZ-II	4Y 1 DZ-II	4Y 1 DZ-II	4Y 1 DZ-II	4Y 1 DZ-II, 2Z	4Y 1 DZ-II	4Y 1 DZ-II, 2Z	4Y 1 DZ-II	4Y 1 DZ-II, 2Z	4Y 1 DZ-II
Load Capacity	kg	1,000	1,500	1,750	2,000	2,000	2,500	2,500	3,000	3,000	3,500
Load Center	mm	500	500	500	500	500	500	500	500	500	500
Overall Width	mm	1,045	1,070	1,070	1,155	1,150	1,155	1,150	1,255	1,240	1,290
Turning Radius (Outside)	mm	1,910	1,990	2,010	2,040	2,200	2,090	2,280	2,130	2,430	2,490
Overhead Guard Height	mm	2,080	2,080	2,080	2,085	2,110	2,085	2,110	2,085	2,170	2,180
Length to Fork Face	mm	2,240	2,290	2,310	2,380	2,560	2,445	2,635	2,520	2,795	2,865
Model		TOYOTA 4Y Gasolin				TOYOTA 1DZ-II Diesel			TOYOTA 2Z Diesel
Piston Displacement	cc	2,237				2,486			3,469
Rated Horsepower/ r.p.m	kW	40/2,400 (43/2,600)				40/2,400 (44/2,600)			49/2,200
Rated Torque/ r.p.m	kW	161/1,800				166/1,600			215/1,600

Clear Visibility

Large Assist Grip

Operator-Friendly Steering Wheel

Roomy Foot Space

Workplace-Friendly Design

Foot-Activated Parking Brake

Serviceability

Operator Presence Sensing System (OPS)

System of Active Stability (SAS)

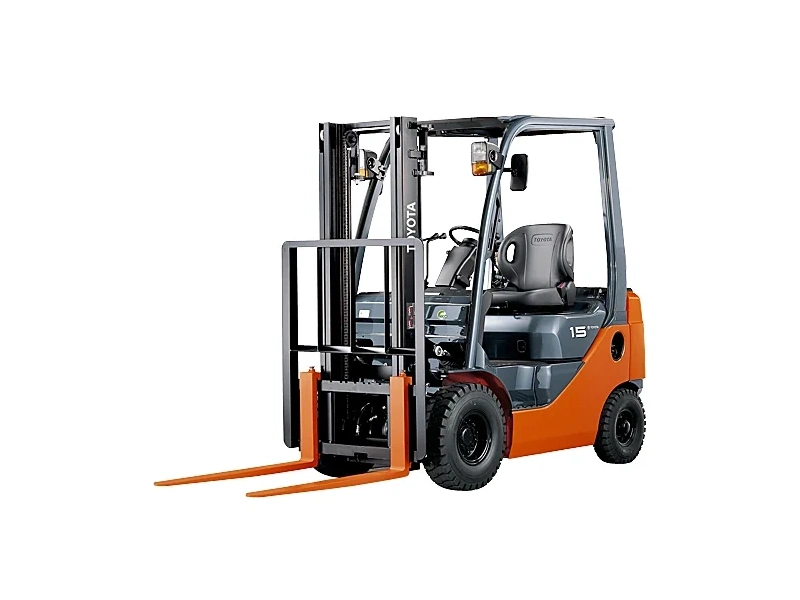

8FG15 / 8FD15

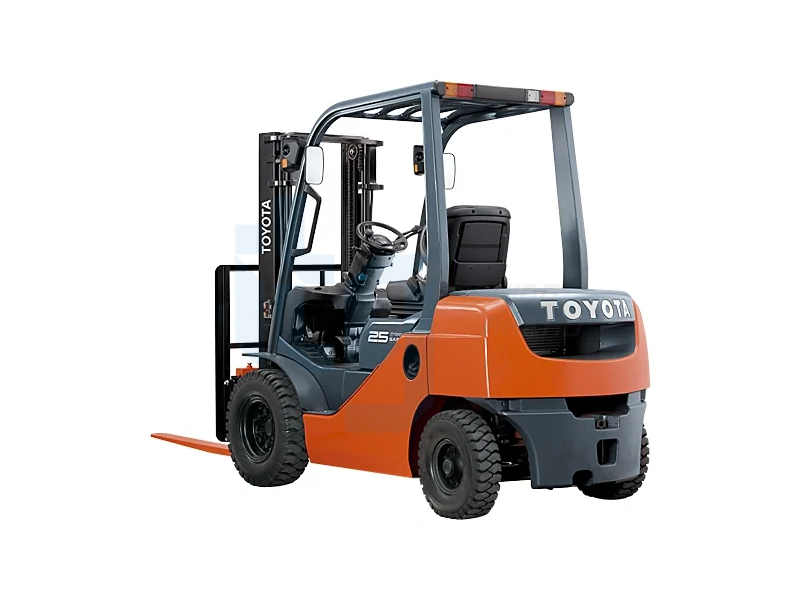

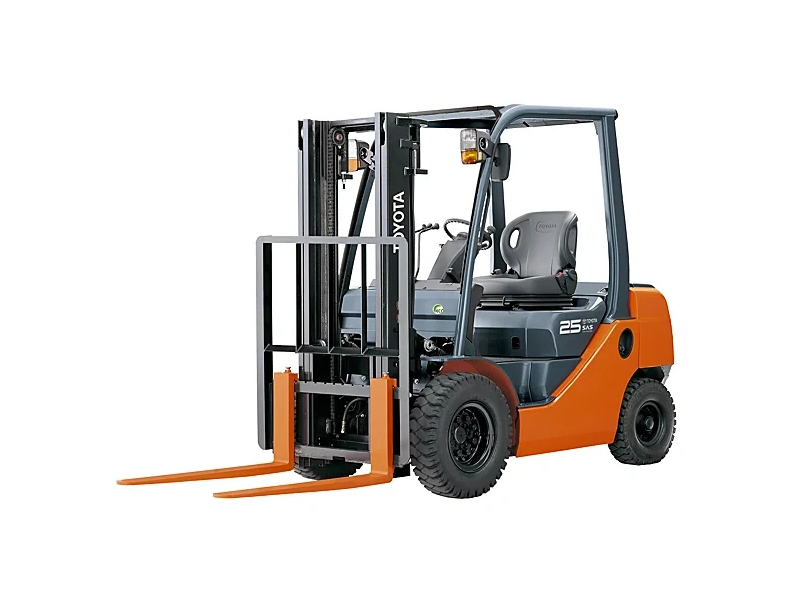

8FG25 / 8FD25

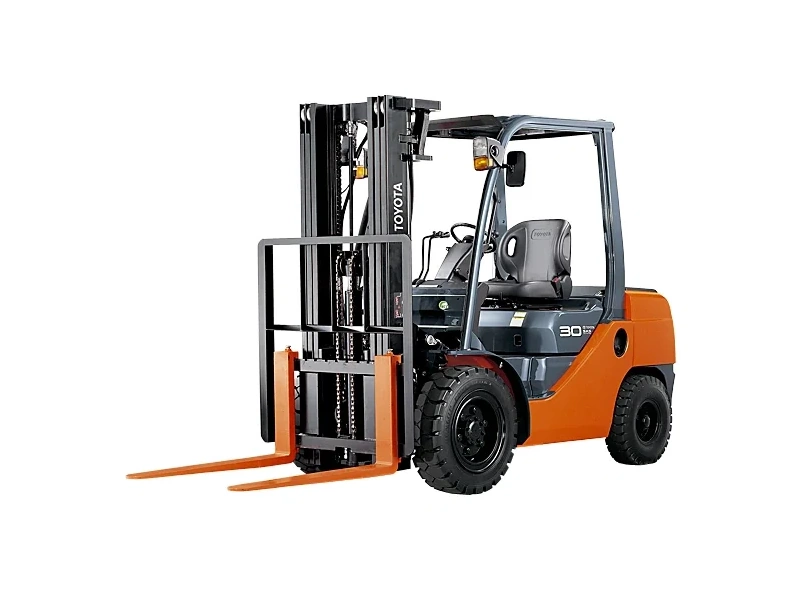

8FG30 / 8FD30
